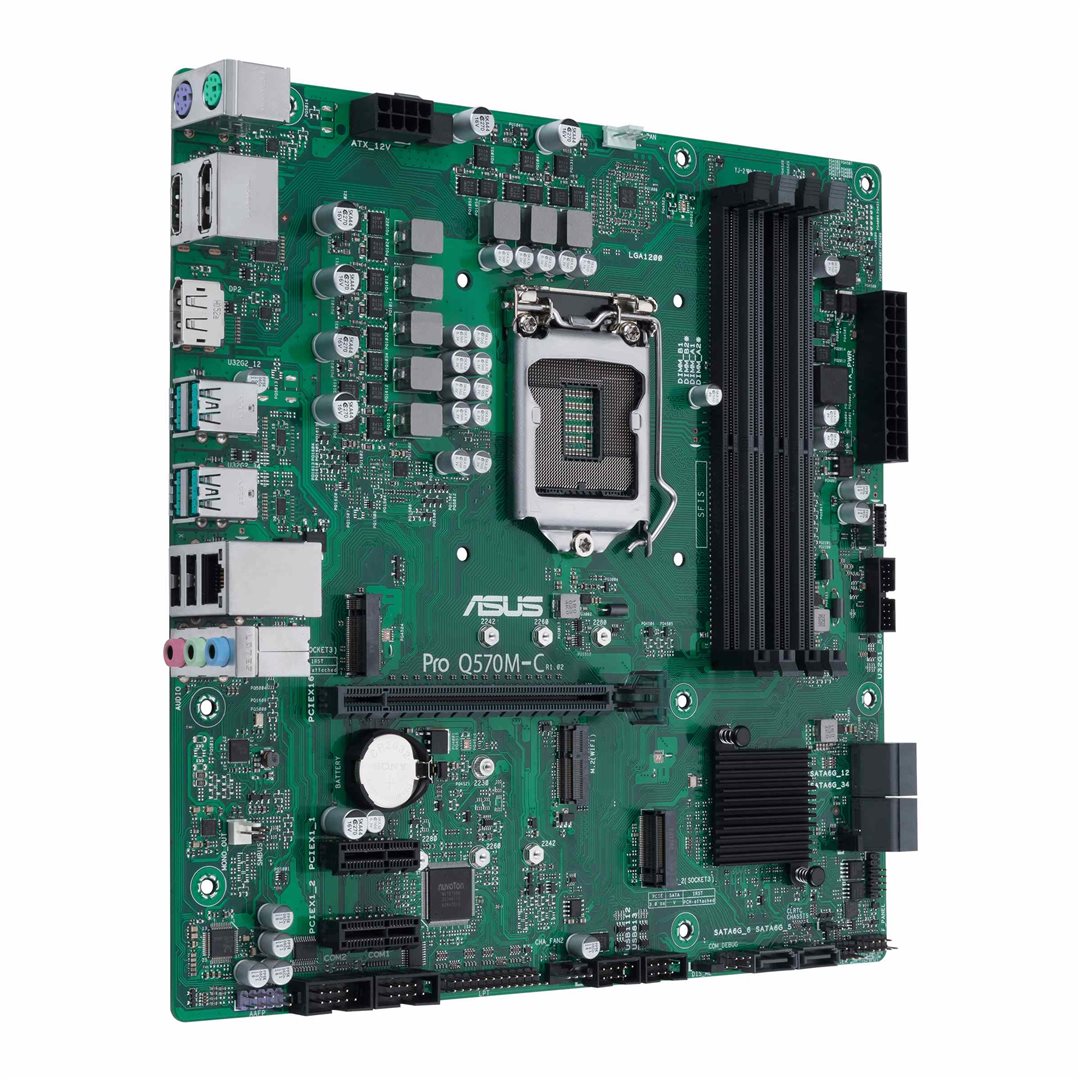

ASUS PRO Q570M-C/ CSM/ LGA 1200/ mATX

Chipset: Intel Q570

Rozměrový formát: microATX (24.4cm x 24.4cm)
Podpora pro procesory:

• 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel 14 nm CPU
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Patice procesoru: Intel Socket LGA1200

Pozice na paměti: 4 x DIMM
Podpora pro paměti:

• 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz
• 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively

Maximální velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• Optimem
• 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Grafická karta:

• dle procesoru

Zvuková karta:

• Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Síťová karta:

• 1 x Intel® 1Gb Ethernet

Rozšiřující sloty:

• 1 x PCIe 4.0/3.0 x16 slot

- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode

• 2 x PCIe 3.0 x1 slots

- Intel Q570 Chipset

SATA:

• 6 x SATA 6Gb/s ports

M.2:

• 2 x M.2 slots

USB:

• zadní USB porty ( celkem 6)

- 4 x USB 3.2 Gen 2 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)

• přední USB porty ( celkem 7)

- 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interní porty:

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x Clear CMOS header
• 1 x Chassis Intrude header
• 2 x COM Port headers
• 1 x Front Panel Audio header (AAFP)
• 1 x COM debug header
• 1 x DIS ME jumper
• 1 x LPT header
• 1 x Mono-out header(with Amp IC)
• 1 x M.2 slot (Key E)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x 10-1 System Panel header

Externí porty:

• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• 2 x DisplayPort
• 1 x HDMITM
• 3 x Audio jacks
• 1 x Intel I219-LM 1Gb Ethernet
• 1 x PS/2 keyboard (purple) port
• 1 x PS/2 mouse (green) port

BIOS: 128+64 Mb Flash ROM

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/Business/Pro-Q570M-C-CSM/techspec/
